GEA-Ground Mount Racking

RAcking Photo 2.png

Features and Benefits

  • Easy install, limited parts for on the job assembly

  • Design flexibility with grid adaptability during install

  • Winter setting results in improved winter yield performance and reduced snow day for production optimization

  • Summer setting results in improved summer yield performance

  • Can be used with either a pile or pad foundation

    The GEA-GM racking system is the culmination of many years of field performance testing and engineering improvement. It is designed with the Ontario Climate and building industry conditions in mind. Our principals represent several generations living in Ontario and fully understand the expected climate conditions.

    The GEA-GM racking system allows the solar modules to perform at their optimum with a winter and summer tilt. The GEA-GM racking system can accommodate a variety of panel dimensions and row configurations. The components are designed to provide enough flexibility to adjust to the desired panel dimension. German Energy Alternatives systems are designed to meet the most stringent engineering design standards.

CaGEA Flat RT image 1.png

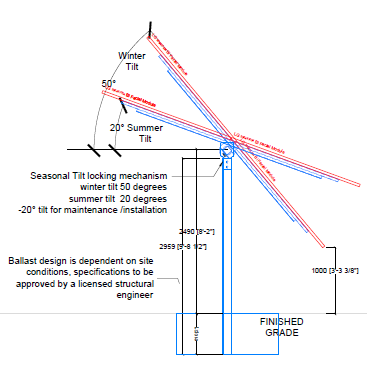

Glat RT TEch Drawing 1.png

TECHNICAL DATA

Racking Material Extruded | Aluminum Frame Material Structural Grade: 6061-T6 and Structural Steel

Footing |  Piles or Reinforced Concrete

Panel Attachment | Extruded Aluminum Frame Material Structural Grade 6061-T6

Hardware | Stainless Steel, Nuts, Bolts, Spring nuts, and washers combined with manufacturer hardware

Tilt Options | Summer – 20 degrees, Winter – 50 degrees

Height | >3 meters

Warranty | 10 years limited
